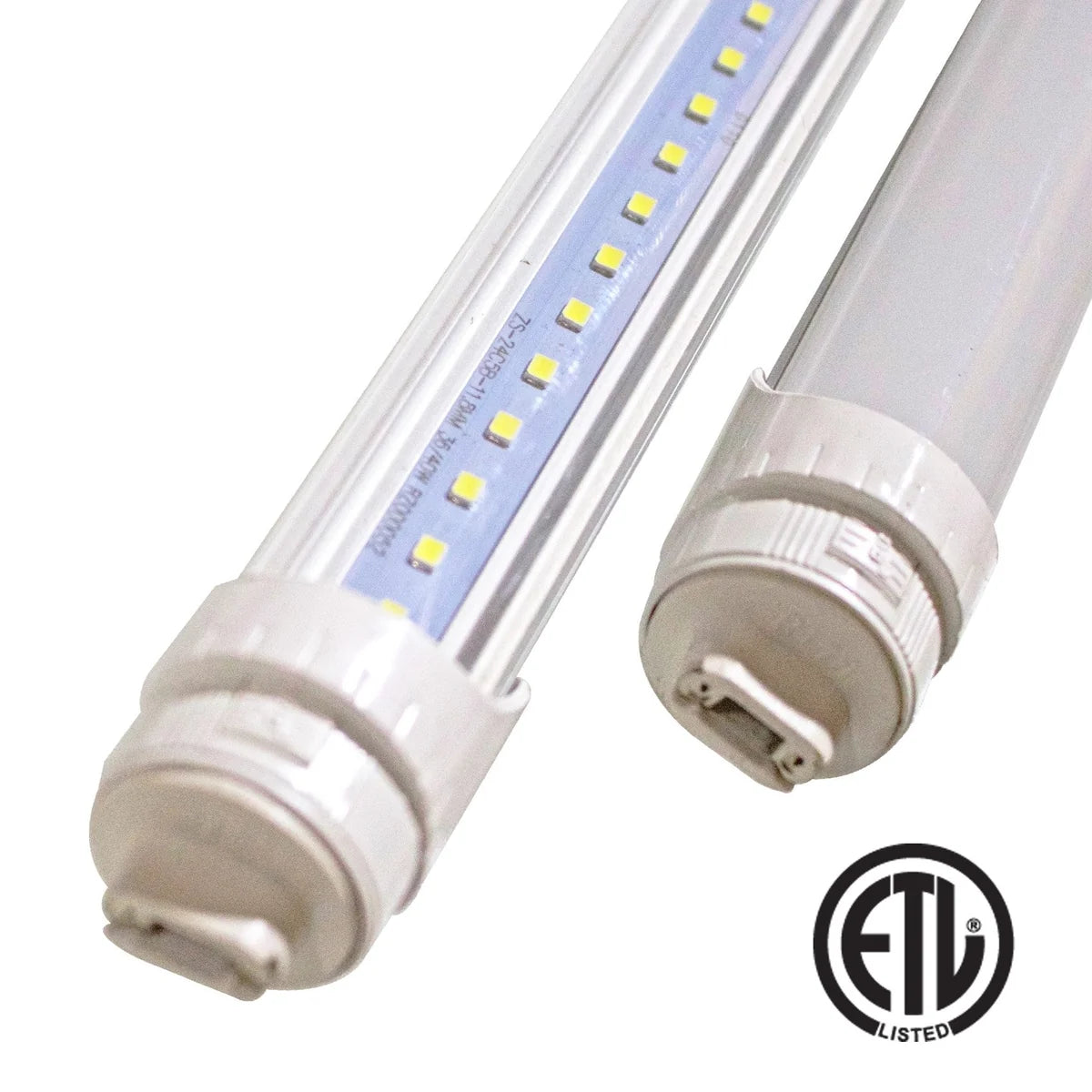

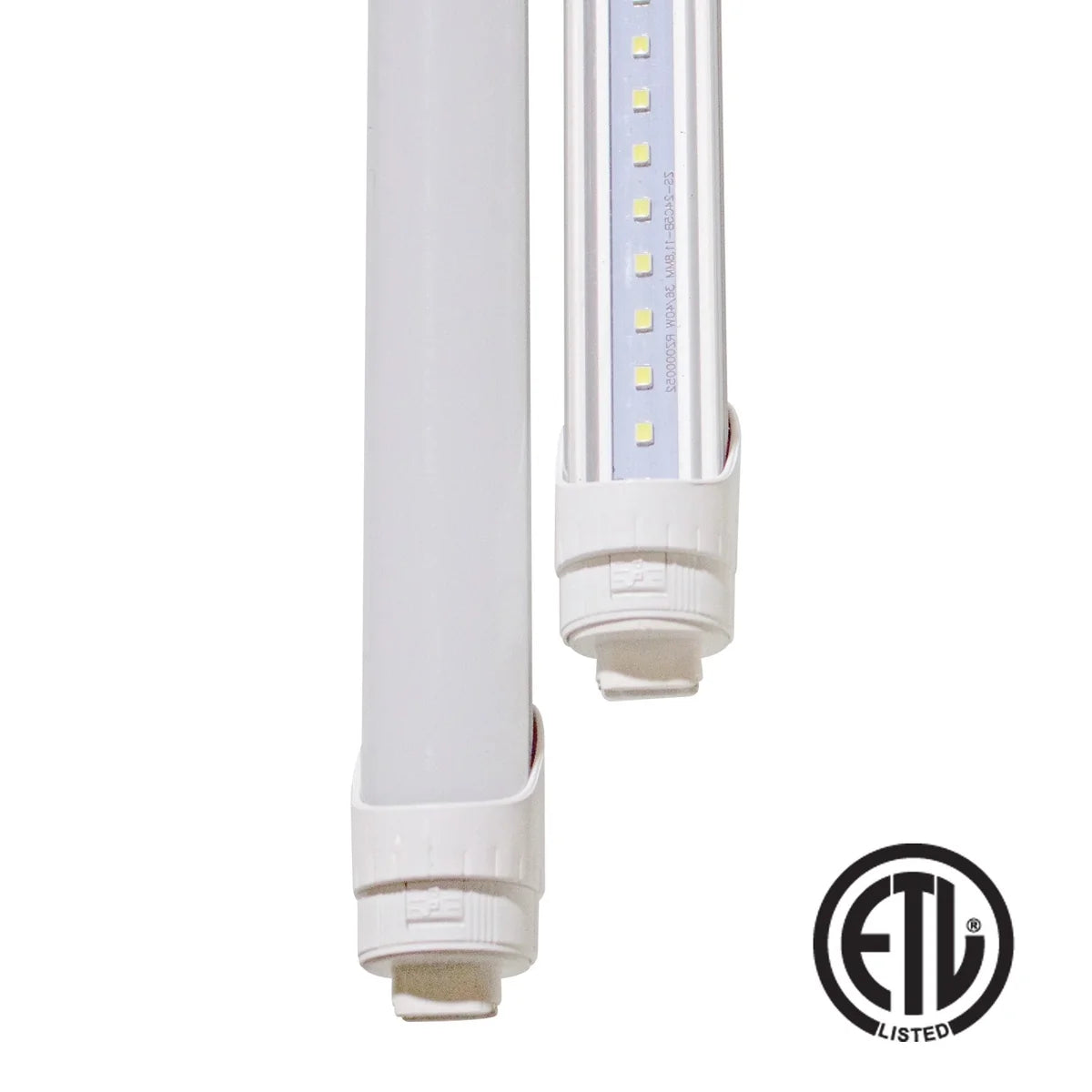

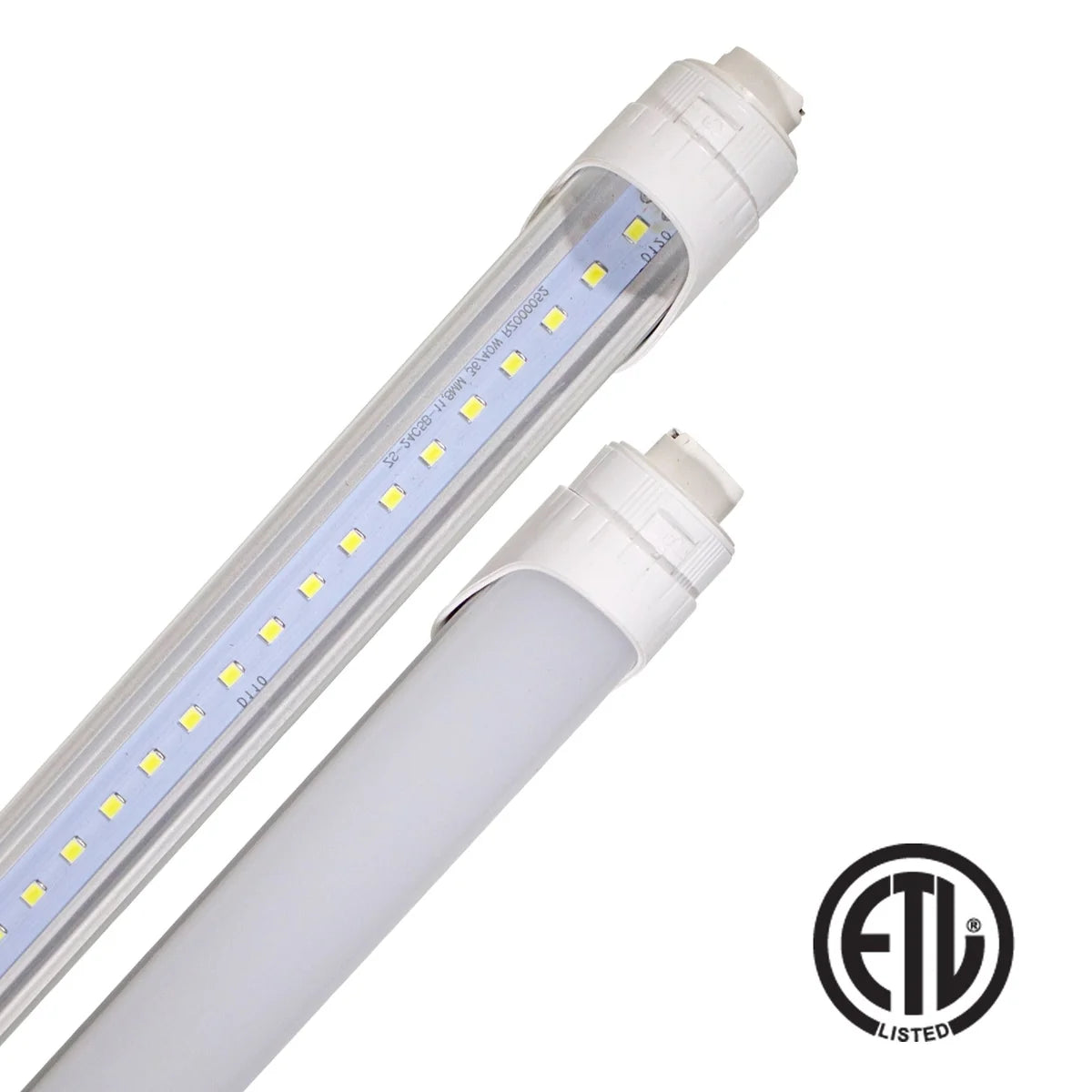

8ft 40W LED Tube - R17D Base - Frosted / Clear –Box of 20 (ETL Certified)

Upgrade your facility with our professional-grade 8ft 40W LED Tube featuring R17D base, engineered for high-performance commercial and industrial lighting. This direct fluorescent replacement delivers superior brightness while cutting energy costs by up to 70%. A single tube replaces 75W–110W traditional fluorescent units, making it the cost-effective choice for warehouses, retail environments, garages, and expansive commercial spaces. ETL certified for safety and reliability. Sold as a box of 20 units for convenient bulk purchasing and installation.

Box Size

• Box of 20 – Ideal for bulk installations and best value

Lens Type

• Clear Lens – Maximum brightness and high output for industrial spaces
• Frosted Lens – Soft, diffused lighting with reduced glare for comfort

Color Temperature

• 6500K Daylight White – Bright and crisp for maximum visibility
• 5000K Cool White – Clean and neutral commercial lighting
• 4000K Natural White – Balanced and comfortable environment

Ballast Bypass – Direct Wire Technology

This LED tube operates on a two-end powered ballast bypass system, eliminating the need for a ballast and improving long-term reliability.

• No ballast failures
• Lower maintenance costs
• Direct wire installation

Applications

Perfect for:

• Warehouses
• Commercial buildings
• Parking garages
• Workshops
• Retail stores
• Industrial facilities

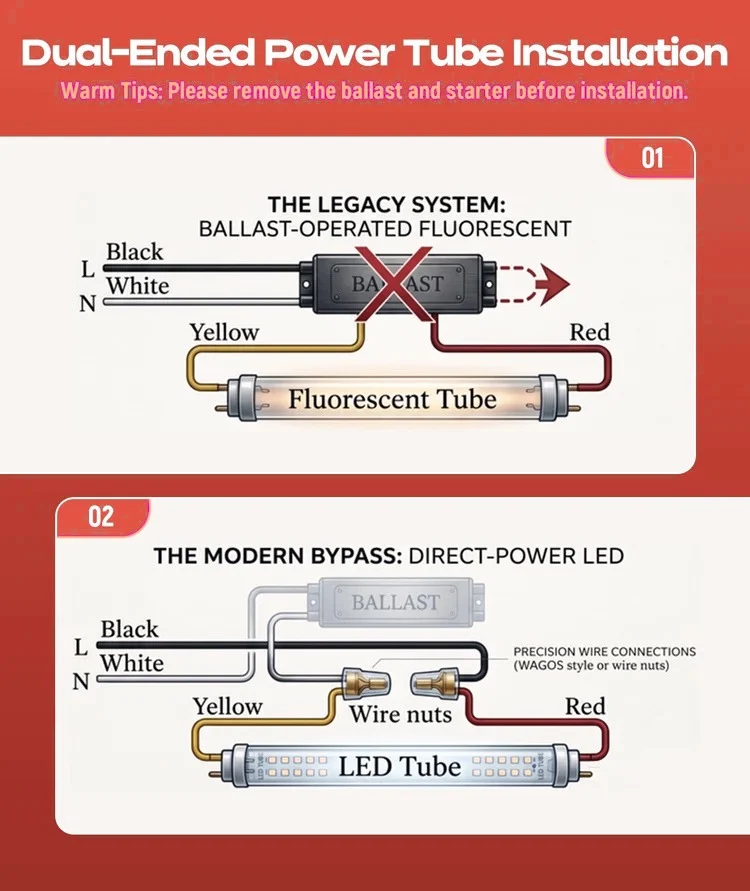

Installation Guide – Ballast Bypass (Direct Wire)

This R17D Base 8ft 40W LED Tube Light requires a ballast bypass installation using a two-end wiring method.

Installation Steps

1. Turn off power at the breaker and confirm using a voltage tester
2. Remove existing fluorescent tubes
3. Open the fixture and remove or disconnect the ballast
4. Cut wires connected to the ballast
5. Connect live (hot) wire to one end of the fixture
6. Connect neutral wire to the opposite end
7. Secure all wiring properly
8. Install the LED tube and rotate if needed
9. Restore power and test

Input voltage: 100–277V AC

 ⚠️Important Notes

• Not compatible with ballasts or dimmers
• Compatible with R17D socket fixtures only
• Professional installation recommended if unsure

⚠️ Warning

• Not for use in vapor-tight fixtures
• Not suitable for outdoor use
• Not suitable for high temperature or damp environments
• Turn off power before installation
